FIX-R PVC MEMBRANE SYSTEMS

FIX-R PVC is a hot air welded solution for your flat roof that is available in both a mechanically fixed and a bonded system.

PVC membrane systems offer a waterproofing solution that leaves more design flexibility for specifiers. Suitable for both new build and refurbishment projects, installation of our FIX-R PVC systems involves no gas torches. With the usage of gas torches on roofs becoming more restricted, PVC membranes have gained in popularity. They are now widely used in a range of sectors, including education, hospitality, commercial, healthcare, and residential buildings.

FIX-R PVC Mech Fixed system is suitable for roofs where the substrate doesn’t allow for adhesives used on a Bonded system. Suitable for use on a range of substrates and deck types, such as minimum 18mm OSB3 & Class 3 Plywood, Institu Concrete, as well as metal decks as part of a warm roof build up or where the deck has been overlaid sheathing board.

Traditionally, our FIX-R PVC Mech Fixed system is used for larger projects and can be installed in a warm or cold roof application, year-round and widely regarded as faster than adhered PVC Membranes.

FIX-R PVC Bonded system adheres the PVC membrane directly to the roof deck using the FIX-R Bonded Membrane Adhesive, which is fully bonded
to the substrate. Due to optimum curing times in warmer temperatures, adhered systems are more suited to warm weather conditions to allow for an efficient install.

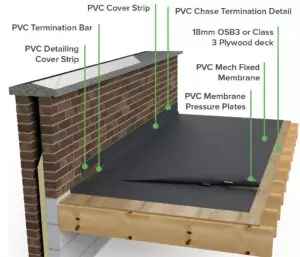

FIX-R PVC MECH FIXED SYSTEM

FIX-R PVC BONDED SYSTEM

IDEAL FOR

✔ ASPHALT / FELT ROOFS
✔ BALCONIES
✘ CEMENT FIBRE ROOFS
✔ COMMERCIAL
✔ COMPLEX DETAILING
✘ CORRUGATED METAL ROOFS
✔ DOMESTIC
✔ DORMER ROOFS
✔ EXTENSIONS
✘ FLASHINGS
✔ GARAGES
✔ GREEN ROOFS
✔ HOSPITALS
✔ LARGE ROOFS
✔ NEW BUILD
✔ RECOATING FAILED SINGLE PLY ROOFS
✔ REPAIR / REFURBISHMENT
✔ SCHOOLS
✔ SMALL ROOFS
✘ WALKWAYS
✔ WINTER APPLICATION

FEATURES & BENEFITS

  • UV resistant
  • Rot resistance
  • Vapour permeable
  • PVC offers durability & flexibility
  • Can be used for both warm and cold roofs
  • Can be applied over many existing substrates, please contact your local SIG Roofing branch for further information

PVC MECH FIXED MEMBRANE

This polyester scrim reinforced membrane is mechanically fastened in the overlap using PVC Membrane Pressure Plates and screws, fixing into the substrate below, overlaps and joints are hot air welded.
PVC Mech Fixed Membrane can be used for ballasted systems or alternatively on adhered systems using PVC Membrane Contact Adhesive.
As well as the above, this system is also used as the upstand detailing membrane on all PVC Mech Fixed Membrane systems.
Available in 1.2mm thickness 1.06 x 20m.
Nominal Weight: 1.785kg/m2

PVC BONDED MEMBRANE

Glass tissue reinforced fleeced backed membrane for bonded roofing systems.
The membrane is bonded to the substrate using PVC Bonded Membrane Adhesive. Side laps are hot air welded. End laps are butt jointed and
waterproofed with a PVC Cover Strip.
Available in 1.2mm thickness 2.12 x 12m.
Nominal Weight: 1.65kg/m2

ADHESIVES

PVC BONDED MEMBRANE ADHESIVE

This is a ready to use single component, moisture curing polyurethane adhesive for bonding fleece backed PVC Bonded Membrane to suitable
substrates, such as Plywood or OSB timber decks and approved Insulation boards. It is applied using a suitable roller.
Coverage: Up to 47m²/11kg tin
Hazard Statements: H351, H319, H334, H315, H317, H336

PVC MEMBRANE CONTACT ADHESIVE

A ready to use nitrile rubber based, contact adhesive for adhering PVC Mech Fixed Membranes for waterproofing upstands and details onto various substrates. It is applied using a suitable brush or roller.
Coverage 5-7.5m²/2.5L Tin
Hazard Statements: H319, H225, H317, H336

SYSTEM ACCESSORIES

PVC DETAILING COVER STRIP (200MM)
Roofing membrane for use on complex detailing.

PVC COVER STRIPS (150MM AND 300MM)
Polyester scrim reinforced membrane strips for use as detailing membranes.

PVC CHASE TERMINATION DETAIL
Laminated metal prefabricated chase termination details for waterproofing upstands.

PVC DRIP TRIM
An 85mm faced drip edge to be mechanically fixed at 150mm, staggered centres to any roof perimeter where the water on the roof is required to drip away from the roof area.

PVC INTERNAL AND EXTERNAL CORNERS
These preformed internal and external corner and outlet units are designed to facilitate the installation of PVC Membranes. Preformed PVC corner units are flexible and can be moulded and heat welded over the FIX-R PVC membrane to detail and waterproof corner areas.

PVC MEMBRANE PRESSURE PLATES
For fixing the PVC Mech Fixed Membrane.

PVC TERMINATION BARS
For mechanical fixing of PVC Membranes at both perimeters and change of level details.

Where to buy

Visit your local SIG Roofing branch to buy FIX-R Pitched & Flat Roofing Solutions
